L-Bar Sealing Machine, Fully Automatic Box Shrink Packaging Machine
L-Bar Sealing Machine, Fully Automatic Box Shrink Packaging Machine
Couldn't load pickup availability

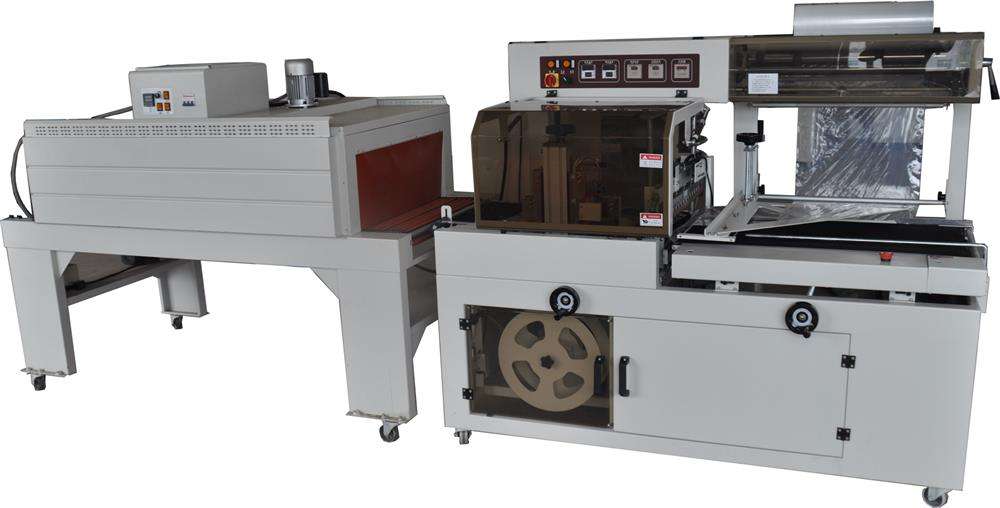

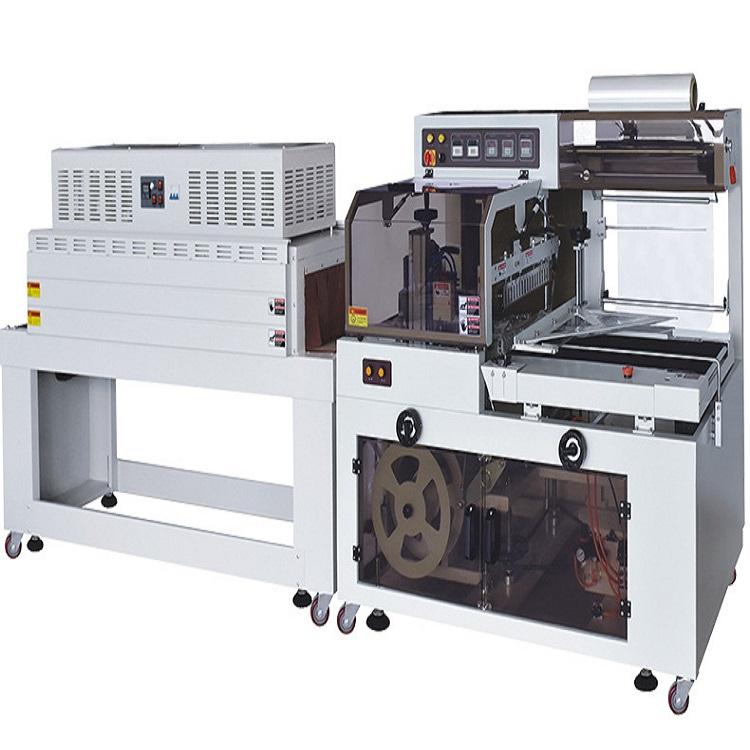

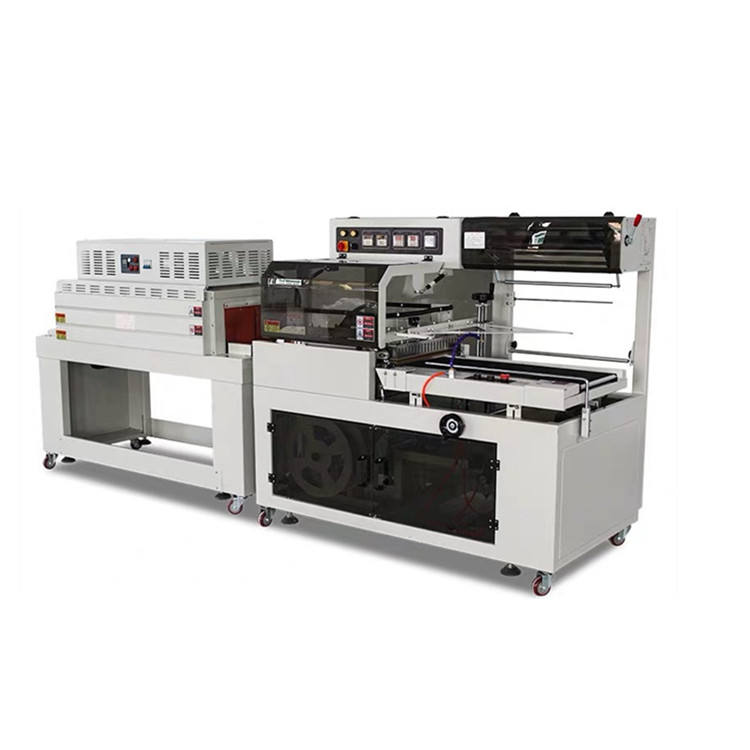

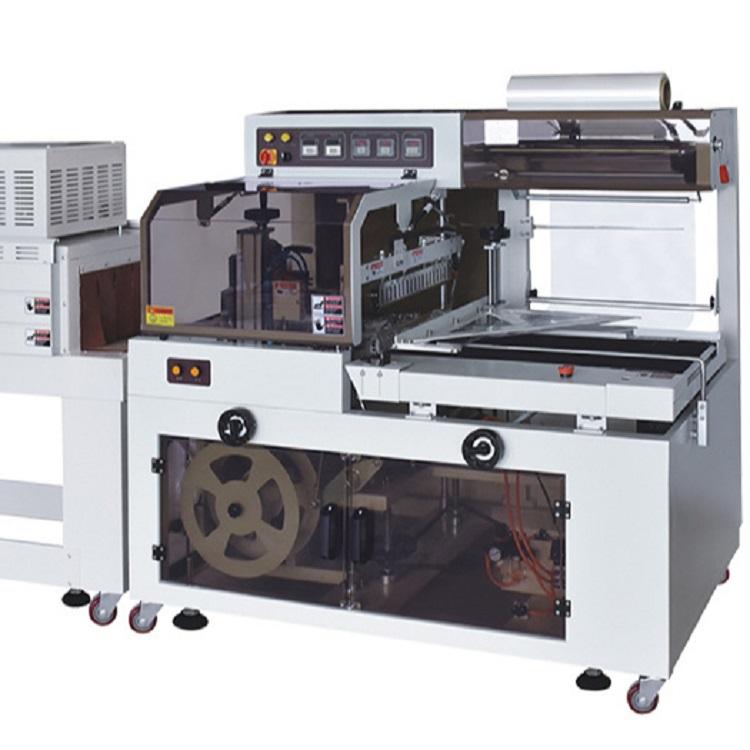

FQA-450+BSE-4522 L-bar automatic heat shrink carton orbital wrapping machine, fully automatic boxes shrink wrap machine, Shrink wrapper
|
Model:
|
FQA-450
|
FQA-550
|
|
Packaging Speed:
|
15-30times/min
|
15-30times/min
|
|
Conveying Weight:
|
10kg
|
10kg
|
|
Film Width:
|
≤500mm
|
≤600mm
|
|
Packing Size:
|
450mm＞L＞100mm ,
W＜330mm, H≤140mm,
L+H＜500mm, W+H＜400mm
|
550mm＞L＞100mm ,
W＜430mm, H≤140mm,
L+H＜600mm, W+H＜500mm
|
|
Packaging dimension:
|
1700*1010*1560mm
|
1960*1100*1600mm
|
|
Voltage:
|
110/220V 50-60hz
|
110/220V 50-60hz
|
|
Model:
|
BSE-4522
|
BSE-5530
|
||
|

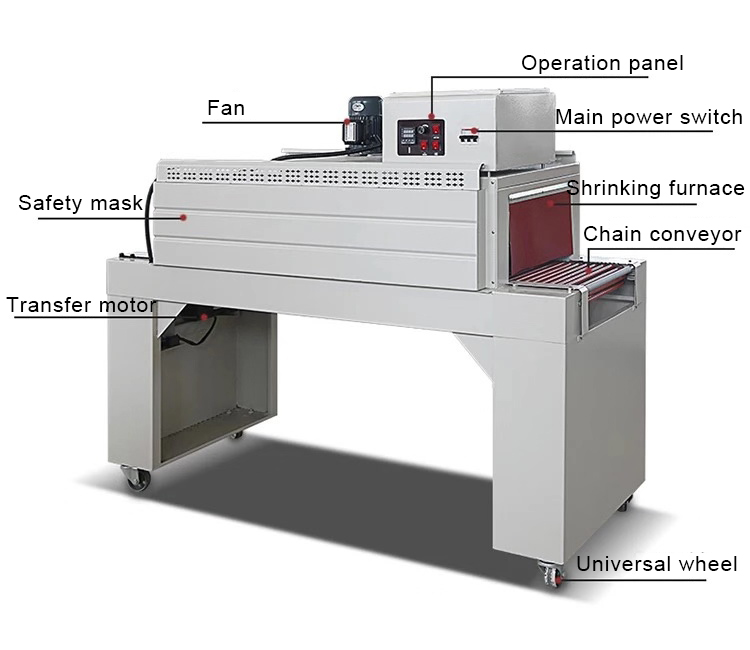

Conveying Speed:
|
1-15m/min
|
1-15m/min
|
||
|
Conveying Weight:
|
20kg
|
20kg
|
||
|
Heating Power:
|
9kw
|
10kw
|
||
|
Shrink Tunnel Size(L*W*H):
|
1300*450*220mm
|
1300*550*300mm
|
||
|
Packaging dimension:
|
1810*810*1450mm
|
1870*900*1580mm
|
||
|
Voltage:
|
220/380V 50-60hz
|
220/380V 50-60hz
|
||

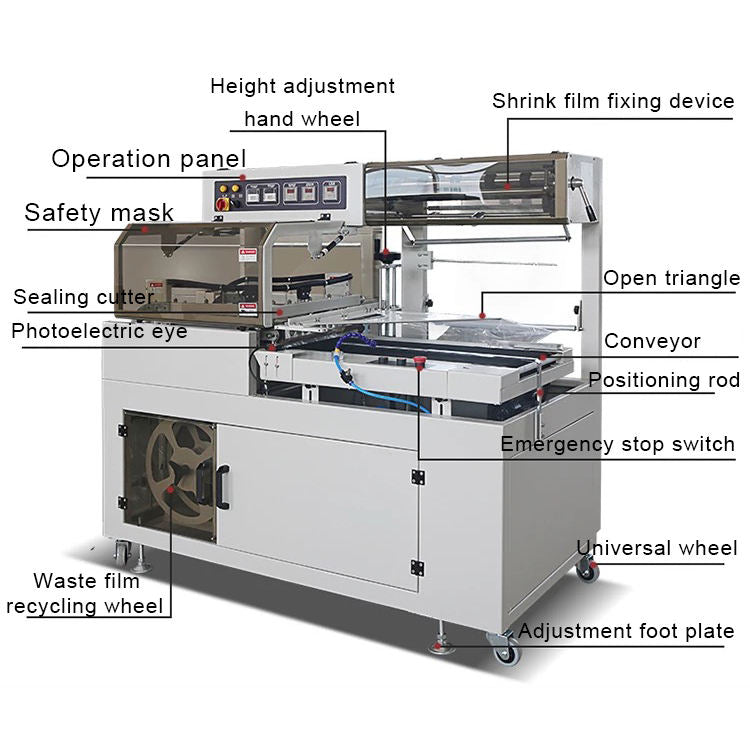

The automatic shrink wrapper machine is a fully automatic unmanned packaging machine with automatic film feeding and punching device, manual adjustment film guide system and manual adjustment feeding and conveying platform. It can be used in a packaging assembly line, feeding, The bagging, sealing and cutting, and shrinkage are automatically completed. High work efficiency, widely adapted to mass shrink packaging of printing, software, CD boxes, electronic products, food, color boxes, cosmetics, greeting cards, photo albums, photo frames, medicine, daily chemicals, cosmetics, flooring, ceramics, beverages, hardware, etc. industry. A single machine is suitable for products of different heights and widths.
