High Fully Powered-Electric Stacker
High Fully Powered-Electric Stacker
Regular price
$7,600.00
Regular price
Sale price
$7,600.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
|

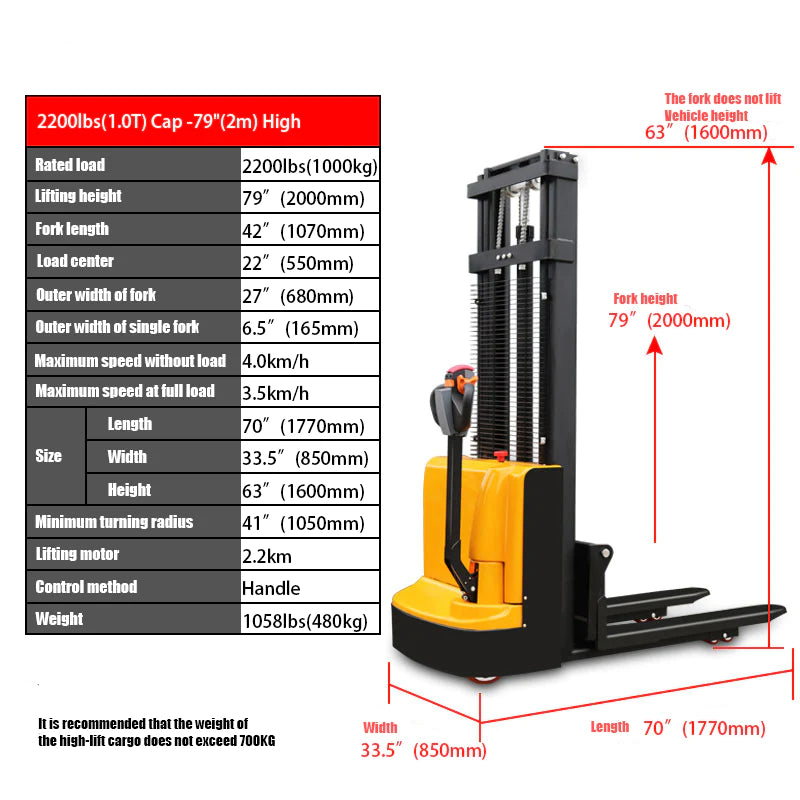

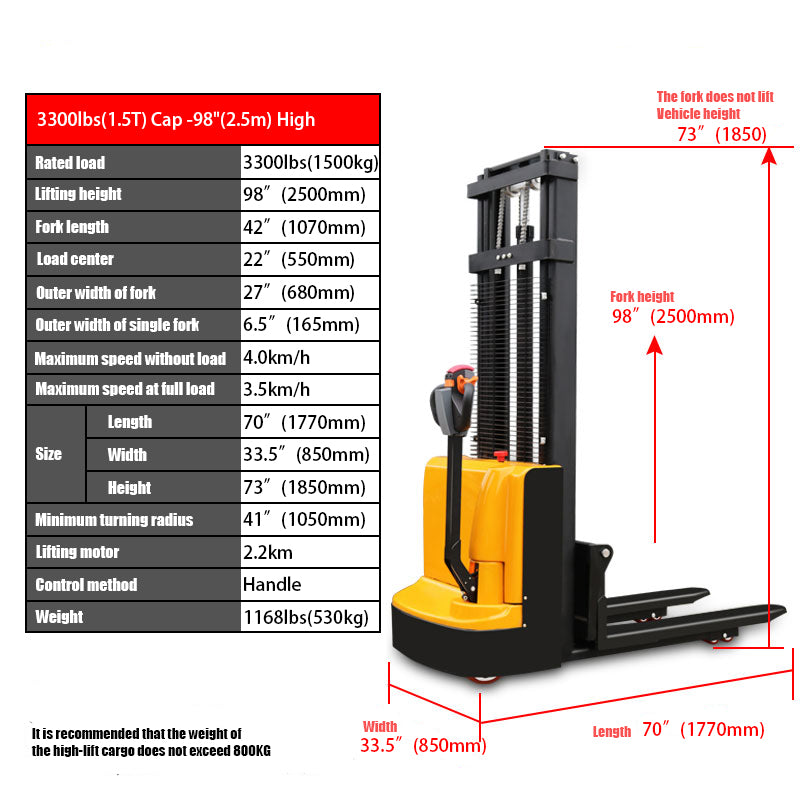

Model |
CTD10 | CTD15 |
|
Rated load |
2200lbs (1000kg） |
3300lbs(1500kg) |
|
Lifiting height |
79"/118" (2m/3m) |
79"/98"/118"(2m/2.5m/3m) |
| Fork length | 42"(1070mm) | 42"(1070mm) |
| Load center | 22"(550mm) | 22"(550mm) |
| Outer width of single fork | 6.5"(165mm) | 6.5"(165mm) |
| Maximum speed without load | 4.0km/h | 4.0km/h |
| Maximum speed at full load | 3.5km/h | 3.5km/h |
| Minimum turning radius | 41"(1050mm) | 41"(1050mm) |
| Lifting motor | 2.2km | 2.2km |
| Control method | Handle | Handle |
